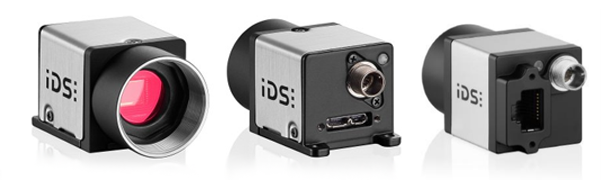

uEYE CP Camera : USB3.0 & GigE
Ultra fast , Compact and Robust
uEYE CP USB3.0 series is the up and coming age of the fruitful IDS camera: With ultra compact, super quick, and thanks to the magnesium case, lightweight and strong. The lockable USB 3.0 connector additionally underlines the appropriateness of the camera for industrial utilize. Offering a large extra highlights, including LUT, hotpixel adjustment, gain, hardware gamma, up to 16 bit color depth per pixel, as well as color correction, the uEYE USB 3.0 camera produces incredible images – even in cruel environments. High resolution sensors and a high data rate of 420 MBytes per second make the USB 3 uEYE CP camera particularly appropriate to use in multi-camera frameworks and 3D applications. This camera is the perfect decision for installed frameworks, because of its lightweight, minimized design and integrated power supply.
| Model | Brand | Model | Format | Sensor | Color | Resolution | Frame Rate | Shutter | Interface |
|---|---|---|---|---|---|---|---|---|---|
| UI-3060CP-M | IDS | uEYE CP | 1/1.2" | CMOS | Mono | 2.0 MP | 166 fps | Global | USB3.0 |
| UI-3060CP-C | IDS | uEYE CP | 1/1.2" | CMOS | Color | 2.0 MP | 166 fps | Global | USB3.0 |
| UI-3070CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 3.0 MP | 134 fps | Global | USB3.0 |
| UI-3070CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 3.0 MP | 134 fps | Global | USB3.0 |
| UI-3080CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 5.0 MP | 86 fps | Global | USB3.0 |
| UI-3080CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 5.0 MP | 86 fps | Global | USB3.0 |
| UI-3130CP-M | IDS | uEYE CP | 1/3.6" | CMOS | Mono | WVGA | 575 fps | Global | USB3.0 |
| UI-3130CP-C | IDS | uEYE CP | 1/3.6" | CMOS | Color | WVGA | 575 fps | Global | USB3.0 |
| UI-3140CP-M | IDS | uEYE CP | 1/2" | CMOS | Mono | 1.3 MP | 224 fps | Global | USB3.0 |
| UI-3140CP-C | IDS | uEYE CP | 1/2" | CMOS | Color | 1.3 MP | 224 fps | Global | USB3.0 |
| UI-3160CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 2.0 MP | 181 fps | Global | USB3.0 |
| UI-3160CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 2.0 MP | 181 fps | Global | USB3.0 |
| UI-3180CP-M | IDS | uEYE CP | 1" | CMOS | Mono | 3.0 MP | 81 fps | Global | USB3.0 |
| UI-3180CP-C | IDS | uEYE CP | 1" | CMOS | Color | 3.0 MP | 81 fps | Global | USB3.0 |
| UI-3220CP-M | IDS | uEYE CP | 1/3" | CMOS | Mono | WVGA | 100 fps | Global | USB3.0 |
| UI-3220CP-C | IDS | uEYE CP | 1/3" | CMOS | Color | WVGA | 100 fps | Global | USB3.0 |
| UI-3240CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 1.3 MP | 60 fps | Global | USB3.0 |
| UI-3240CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 1.3 MP | 60 fps | Global | USB3.0 |
| UI-3240CP-NIR | IDS | uEYE CP | 1/1.8" | CMOS | NIR | 1.3 MP | 60 fps | Global | USB3.0 |
| UI-3250CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 2.0 MP | 60 fps | Global | USB3.0 |
| UI-3250CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 2.0 MP | 60 fps | Global | USB3.0 |
| UI-3260CP-M | IDS | uEYE CP | 1/1.2" | CMOS | Mono | 2.0 MP | 47 fps | Global | USB3.0 |
| UI-3260CP-C | IDS | uEYE CP | 1/1.2" | CMOS | Color | 2.0 MP | 47 fps | Global | USB3.0 |
| UI-3270CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 3.0 MP | 57 fps | Global | USB3.0 |
| UI-3270CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 3.0 MP | 57 fps | Global | USB3.0 |
| UI-3280CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 5.0 MP | 36 fps | Global | USB3.0 |
| UI-3280CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 5.0 MP | 36 fps | Global | USB3.0 |
| UI-3360CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 2.0 MP | 152 fps | Global | USB3.0 |
| UI-3360CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 2.0 MP | 152 fps | Global | USB3.0 |
| UI-3360CP-NIR | IDS | uEYE CP | 2/3" | CMOS | NIR | 2.0 MP | 152 fps | Global | USB3.0 |
| UI-3370CP-M | IDS | uEYE CP | 1" | CMOS | Mono | 4.0 MP | 80 fps | Global | USB3.0 |
| UI-3370CP-C | IDS | uEYE CP | 1" | CMOS | Color | 4.0 MP | 80 fps | Global | USB3.0 |
| UI-3370CP-NIR | IDS | uEYE CP | 1" | CMOS | NIR | 4.0 MP | 80 fps | Global | USB3.0 |
| UI-3480CP-M | IDS | uEYE CP | 1/2" | CMOS | Mono | 5.0 MP | 15 fps | Rolling | USB3.0 |
| UI-3580CP-C | IDS | uEYE CP | 1/2" | CMOS | Color | 5.0 MP | 15 fps | Rolling | USB3.0 |
| UI-3590CP-C | IDS | uEYE CP | 1/2.3" | CMOS | Color | 18.0 MP | 21 fps | Rolling | USB3.0 |
| UI-3860CP-M | IDS | uEYE CP | 1/2.8" | CMOS | Mono | 2.0 MP | 135 fps | Rolling | USB3.0 |
| UI-3860CP-C | IDS | uEYE CP | 1/2.8" | CMOS | Color | 2.0 MP | 135 fps | Rolling | USB3.0 |
| UI-3880CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 6.0 MP | 58 fps | Global | USB3.0 |
| UI-3880CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 6.0 MP | 58 fps | Global | USB3.0 |
Super fast , Powerful and PoE function
IDS CP GigE is small dimension only 29 x 29 x 41 mm uEye camera, the GigE uEye CP industrial camera with Gigabit Ethernet interface prides the maximized performance of camera at smallest packages. The super compact, strong, yet lightweight magnesium case has screw-on connectors. The 6-pin Hirose connector for controlling the trigger and flash signals help to make the camera appropriate for industrial utilize. As the camera can be worked by Power over Ethernet (PoE), only one cable up to 100 meters is required; an extra power source isn't required. The Hirose connector can be utilized as an alternative power supply. Thanks to the unique IDS software, You will get a real experience plug and play, Although it is Gigabit Ethernet cameras. Computer will auto detect cameras and ready to use promptly.
| Model | Brand | Model | Format | Sensor | Color | Resolution | Frame Rate | Shutter | Interface |
|---|---|---|---|---|---|---|---|---|---|
| UI-5040CP-M | IDS | uEYE CP | 1/3" | CMOS | Mono | 1.6 MP | 73 fps | Global | GigE |
| UI-5040CP-C | IDS | uEYE CP | 1/3" | CMOS | Color | 1.6 MP | 73 fps | Global | GigE |
| GV-5040CP-M | IDS | uEYE CP | 1/3" | CMOS | Mono | 1.6 MP | 76 fps | Global | GigE |
| GV-5040CP-C | IDS | uEYE CP | 1/3" | CMOS | Color | 1.6 MP | 76 fps | Global | GigE |
| GV-5260CP-M | IDS | uEYE CP | 1/1.2" | CMOS | Mono | 2.0 MP | 43 fps | Global | GigE |
| GV-5260CP-C | IDS | uEYE CP | 1/1.2" | CMOS | Color | 2.0 MP | 43 fps | Global | GigE |
| GV-5270CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 3.0 MP | 36 fps | Global | GigE |
| GV-5270CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 3.0 MP | 36 fps | Global | GigE |
| GV-5280CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 5.0 MP | 22 fps | Global | GigE |
| GV-5280CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 5.0 MP | 22 fps | Global | GigE |
| GV-5880CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 6.0 MP | 18 fps | Rolling | GigE |
| GV-5880CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 6.0 MP | 18 fps | Rolling | GigE |
| UI-5130CP-M | IDS | uEYE CP | 1/3.6" | CMOS | Mono | WVGA | 205 fps | Global | GigE |
| UI-5130CP-C | IDS | uEYE CP | 1/3.6" | CMOS | Color | WVGA | 205 fps | Global | GigE |
| UI-5140CP-M | IDS | uEYE CP | 1/2" | CMOS | Mono | 1.3 MP | 88 fps | Global | GigE |
| UI-5140CP-C | IDS | uEYE CP | 1/2" | CMOS | Color | 1.3 MP | 88 fps | Global | GigE |
| UI-5220CP-M | IDS | uEYE CP | 1/3" | CMOS | Mono | WVGA | 100 fps | Global | GigE |
| UI-5220CP-C | IDS | uEYE CP | 1/3" | CMOS | Color | WVGA | 100 fps | Global | GigE |
| UI-5240CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 1.3 MP | 60 fps | Global | GigE |
| UI-5240CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 1.3 MP | 60 fps | Global | GigE |
| UI-5240CP-NIR | IDS | uEYE CP | 1/1.8" | CMOS | NIR | 1.3 MP | 60 fps | Global | GigE |
| UI-5250CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 2.0 MP | 52 fps | Global | GigE |
| UI-5250CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 2.0 MP | 52 fps | Global | GigE |
| UI-5260CP-M | IDS | uEYE CP | 1/1.2" | CMOS | Mono | 2.0 MP | 47 fps | Global | GigE |
| UI-5260CP-C | IDS | uEYE CP | 1/1.2" | CMOS | Color | 2.0 MP | 47 fps | Global | GigE |
| UI-5270CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 3.0 MP | 36 fps | Global | GigE |
| UI-5270CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 3.0 MP | 36 fps | Global | GigE |
| UI-5280CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 5.0 MP | 23 fps | Global | GigE |
| UI-5280CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 5.0 MP | 23 fps | Global | GigE |
| UI-5360CP-M | IDS | uEYE CP | 2/3" | CMOS | Mono | 2.0 MP | 36 fps | Global | GigE |
| UI-5360CP-C | IDS | uEYE CP | 2/3" | CMOS | Color | 2.0 MP | 36 fps | Global | GigE |
| UI-5360CP-NIR | IDS | uEYE CP | 2/3" | CMOS | NIR | 2.0 MP | 36 fps | Global | GigE |
| UI-5370CP-M | IDS | uEYE CP | 1" | CMOS | Mono | 4.0 MP | 28 fps | Global | GigE |
| UI-5370CP-C | IDS | uEYE CP | 1" | CMOS | Color | 4.0 MP | 28 fps | Global | GigE |
| UI-5370CP-NIR | IDS | uEYE CP | 1" | CMOS | NIR | 4.0 MP | 28 fps | Global | GigE |
| UI-5480CP-M | IDS | uEYE CP | 1/2" | CMOS | Mono | 5.0 MP | 15 fps | Rolling | GigE |
| UI-5480CP-C | IDS | uEYE CP | 1/2" | CMOS | Color | 5.0 MP | 15 fps | Rolling | GigE |
| UI-5580CP-C | IDS | uEYE CP | 1/2" | CMOS | Color | 5.0 MP | 15 fps | Rolling | GigE |
| UI-5860CP-M | IDS | uEYE CP | 1/2.8" | CMOS | Mono | 2.0 MP | 54 fps | Rolling | GigE |
| UI-5860CP-C | IDS | uEYE CP | 1/2.8" | CMOS | Color | 2.0 MP | 54 fps | Rolling | GigE |
| UI-5880CP-M | IDS | uEYE CP | 1/1.8" | CMOS | Mono | 6.0 MP | 18 fps | Rolling | GigE |
| UI-5880CP-C | IDS | uEYE CP | 1/1.8" | CMOS | Color | 6.0 MP | 18 fps | Rolling | GigE |
