IDS uEYE Camera Best quality LE series USB3.1 & USB3.0 Camera

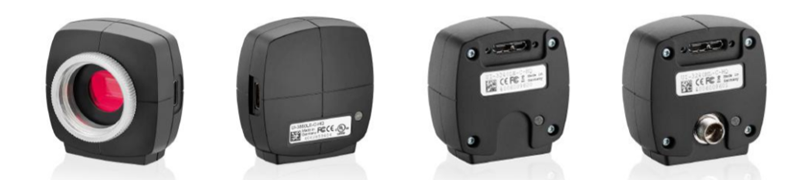

USB3.0 uEYE LE and ML Camera

10 out of 10 based on 16332 ratings.


Cost-effective , versatile and Space-saving camera

Our uEye LE USB 3.1 & USB3.0 are industrial CMOS camera with perfect and cost-effective volume IDS uEYE camera for applications in microscopy, medical technology, traffic monitoring and in classic machine vision. The USB3.X uEye LE is available in a housing and board camera with S-mount or C/CS lens mount for a awesome selection of lenses, wide-angled lenses included also have a I/O connector for GPIO, trigger and flash. USB Power Delivery enables to offer a variable power supply for periperal devices at the I/O port.

Model Brand Model Format Sensor Color Resolution Frame Rate Shutter Interface
U3-3240LE-M IDS uEYE LE 1/1.8" CMOS Mono 1.3 MP 59 fps Global USB3.0
U3-3240LE-C IDS uEYE LE 1/1.8" CMOS Color 1.3 MP 59 fps Global USB3.0
U3-3240LE-M-NIR IDS uEYE LE 1/1.8" CMOS NIR 1.3 MP 59 fps Global USB3.0
U3-3240LE-NIR IDS uEYE LE 1/1.8" CMOS NIR 1.3 MP 59 fps Global USB3.0
U3-3250LE-M IDS uEYE LE 1/1.8" CMOS Mono 2.0 MP 40 fps Global USB3.0
U3-3250LE-C IDS uEYE LE 1/1.8" CMOS Color 2.0 MP 40 fps Global USB3.0
U3-3480LE-M IDS uEYE LE 1/2" CMOS Mono 5.0 MP 12 fps Rolling USB3.0
U3-3580LE-C IDS uEYE LE 1/2" CMOS Color 5.0 MP 12 fps Rolling USB3.0
UI-3130LE-M IDS uEYE LE 1/4" CMOS Mono WVGA 135 fps Global USB3.0
UI-3130LE-C IDS uEYE LE 1/4" CMOS Color WVGAVGA 135 fps Global USB3.0
UI-3240LE-M IDS uEYE LE 1/1.8" CMOS Mono 1.3 MP 60 fps Global USB3.0
UI-3240LE-C IDS uEYE LE 1/1.8" CMOS Color 1.3 MP 60 fps Global USB3.0
UI-3240LE-M-NIR IDS uEYE LE 1/1.8" CMOS NIR 1.3 MP 60 fps Global USB3.0
UI-3240LE-NIR IDS uEYE LE 1/1.8" CMOS NIR 1.3 MP 60 fps Global USB3.0
UI-3250LE-M IDS uEYE LE 1/1.8" CMOS Mono 2.0 MP 60 fps Global USB3.0
UI-3250LE-C IDS uEYE LE 1/1.8" CMOS Color 2.0 MP 60 fps Global USB3.0
UI-3270LE-M IDS uEYE LE 1/1.8" CMOS Mono 3.0 MP 57 fps Global USB3.0
UI-3270LE-C IDS uEYE LE 1/1.8" CMOS Color 3.0 MP 57 fps Global USB3.0
UI-3480LE-M IDS uEYE LE 1/2" CMOS Mono 5.0 MP 15 fps Rolling USB3.0
UI-3580LE-C IDS uEYE LE 1/2" CMOS Color 5.0 MP 15 fps Rolling USB3.0
UI-3590LE-C IDS uEYE LE 1/2.3" CMOS Color 18.0 MP 12 fps Rolling USB3.0
UI-3860LE-M IDS uEYE LE 1/2.8" CMOS Mono 2.0 MP 135 fps Rolling USB3.0
UI-3860LE-C IDS uEYE LE 1/2.8" CMOS Color 2.0 MP 135 fps Rolling USB3.0
UI-3880LE-M IDS uEYE LE 1/1.8" CMOS Mono 6.0 MP 58 fps Global USB3.0
UI-3880LE-C IDS uEYE LE 1/1.8" CMOS Color 6.0 MP 58 fps Global USB3.0

Compact, Easy integration camera for mechanical engineering

Light and Durable: uEye ML USB3 weighing 41 g with a size of 47 x 46 x 28 mm this IDS uEye Camera is ideal camera for all small space. Yet the camera also offers all advantages one would expect from an appropriate industrial camera. The USB 3 uEye ML is benefited for a wide range of applications because 2 GPIOs, opto-decoupled trigger and flash. Its C/CS lens mount allows for a awesome selection of lenses, wide-angles lenses included. Camera combination is is especially simple in Plug&Play and USB's one cable solution for data transfer and power supply.

Model Brand Model Format Sensor Color Resolution Frame Rate Shutter Interface
U3-3240ML-M IDS uEYE ML 1/1.8" CMOS Mono 1.3 MP 59 fps Global USB3.0
U3-3240ML-C IDS uEYE ML 1/1.8" CMOS Color 1.3 MP 59 fps Global USB3.0
U3-3240ML-NIR IDS uEYE ML 1/1.8" CMOS NIR 1.3 MP 59 fps Global USB3.0
U3-3250ML-M IDS uEYE ML 1/1.8" CMOS Mono 2.0 MP 40 fps Global USB3.0
U3-3250ML-C IDS uEYE ML 1/1.8" CMOS Color 2.0 MP 40 fps Global USB3.0
U3-3480ML-M IDS uEYE ML 1/2" CMOS Mono 5.0 MP 12 fps Rolling USB3.0
U3-3580ML-C IDS uEYE ML 1/2" CMOS Color 5.0 MP 12 fps Rolling USB3.0
UI-3240ML-M IDS uEYE ML 1/1.8" CMOS Mono 1.3 MP 60 fps Global USB3.0
UI-3240ML-C IDS uEYE ML 1/1.8" CMOS Color 1.3 MP 60 fps Global USB3.0
UI-3240ML-NIR IDS uEYE ML 1/1.8" CMOS NIR 1.3 MP 60 fps Global USB3.0
UI-3250ML-M IDS uEYE ML 1/1.8" CMOS Mono 2.0 MP 60 fps Global USB3.0
UI-3250ML-C IDS uEYE ML 1/1.8" CMOS Color 2.0 MP 60 fps Global USB3.0
UI-3480ML-M IDS uEYE ML 1/2" CMOS Mono 5.0 MP 15 fps Rolling USB3.0
UI-3580ML-C IDS uEYE ML 1/2" CMOS Color 5.0 MP 15 fps Rolling USB3.0
