Sentech Camera We offer the best quality CameraLink Camera

Sentech Camera Link Camera
6.5 out of 10 based on 355 ratings.


The advantages of the Sentech Camera Link Cameras series include:


  • Ultra-Compact Precision Metal Housing
  • Accurate CCD Alignment
  • Color (RGB Bayer Filter) and Monochrome
  • High Frame Rate (Ideal for High Speed Image Capture)
  • Trigger Modes (Reset & Non-Reset) Pulse Width and Edge Preset
  • Multiple Trigger Channels (CL Cable or Hirose Connector)
  • Low Heat System
  • Remote Head and Power Over Camera Link Models

Model Brand Model Format Sensor Color Resolution Frame Rate Shutter Interface
STC-CMB2MCL Sentech CL CMOS 2/3" CMOS Mono 2048 x 1088 340 fps Global CameraLink
STC-CMC2MCL Sentech CL CMOS 2/3" CMOS Color 2048 x 1088 340 fps Global CameraLink
STC-CMB4MCL Sentech CL CMOS 1" CMOS Mono 2048 x 2048 180 fps Global CameraLink
STC-CMC4MCL Sentech CL CMOS 1" CMOS Color 2048 x 2048 180 fps Global CameraLink

The advantages of the Sentech Camera Link Cameras series include:


  • Ultra-Compact Precision Metal Housing
  • Accurate CCD Alignment
  • Color (RGB Bayer Filter) and Monochrome
  • High Frame Rate (Ideal for High Speed Image Capture)
  • Trigger Modes (Reset & Non-Reset) Pulse Width and Edge Preset
  • Multiple Trigger Channels (CL Cable or Hirose Connector)
  • Low Heat System
  • Remote Head and Power Over Camera Link Models

Model Brand Model Format Sensor Color Resolution Frame Rate Shutter Interface

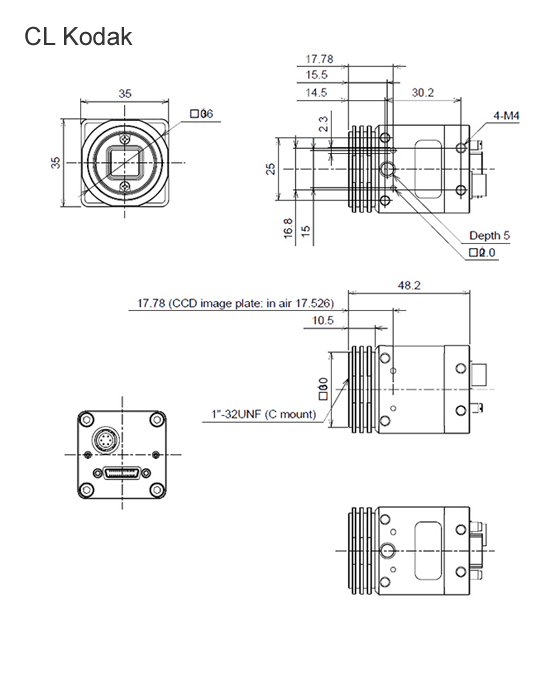

STC-CL338A Sentech CL Kodak Sensor 1/3" CCD Mono 644 x 484 240 fps Global CameraLink
STC-CLC338A Sentech CL Kodak Sensor 1/3" CCD Color 644 x 484 240 fps Global CameraLink

The advantages of the Sentech Camera Link Cameras series include:


  • Ultra-Compact Precision Metal Housing
  • Accurate CCD Alignment
  • Color (RGB Bayer Filter) and Monochrome
  • High Frame Rate (Ideal for High Speed Image Capture)
  • Trigger Modes (Reset & Non-Reset) Pulse Width and Edge Preset
  • Multiple Trigger Channels (CL Cable or Hirose Connector)
  • Low Heat System
  • Remote Head and Power Over Camera Link Models

Model Brand Model Format Sensor Color Resolution Frame Rate Shutter Interface

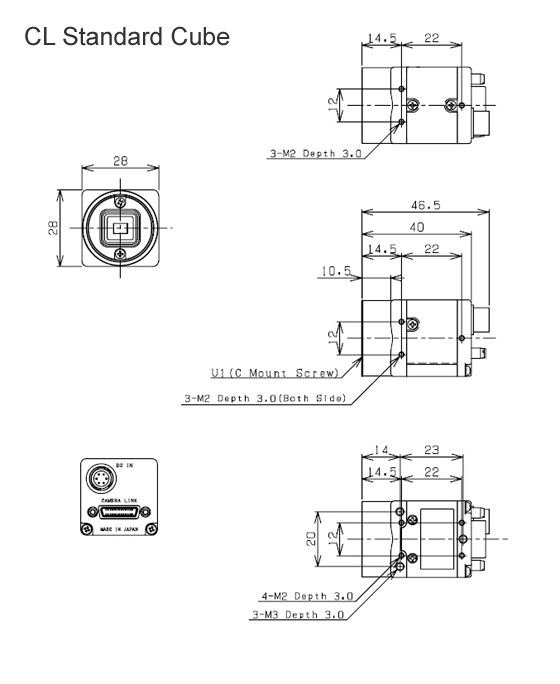

STC-CL33A Sentech CL Standard 1/3" CCD Mono 648 x 494 90 fps Global CameraLink
STC-CLC33A Sentech CL Standard 1/3" CCD Color 648 x 494 90 fps Global CameraLink
STC-CL83A Sentech CL Standard 1/3" CCD Mono 1024 x 768 30 fps Global CameraLink
STC-CLC83A Sentech CL Standard 1/3" CCD Color 1024 x 768 30 fps Global CameraLink
STC-CL83A-44 Sentech CL Standard 1/3" CCD Mono 1024 x 768 44 fps Global CameraLink
STC-CLC83A-44 Sentech CL Standard 1/3" CCD Color 1024 x 768 44 fps Global CameraLink
STC-CL152A Sentech CL Standard 1/2" CCD Mono 1360 x 1024 19 fps Global CameraLink
STC-CLC152A Sentech CL Standard 1/2" CCD Color 1360 x 1024 19 fps Global CameraLink
STC-CL202A Sentech CL Standard 1/1.8" CCD Mono 1620 x 1220 16 fps Global CameraLink
STC-CLC202A Sentech CL Standard 1/1.8" CCD Color 1620 x 1220 16 fps Global CameraLink
STC-CL232A Sentech CL Standard 1/1.8" CCD Mono 1620 x 1236 30 fps Global CameraLink
STC-CLC232A Sentech CL Standard 1/1.8" CCD Color 1620 x 1236 30 fps Global CameraLink
STC-CL500A Sentech CL Standard 2/3" CCD Mono 2448 x 2058 16 fps Global CameraLink
STC-CLC500A Sentech CL Standard 2/3" CCD Color 2448 x 2058 16 fps Global CameraLink

The advantages of the Sentech Camera Link Cameras series include:


  • Ultra-Compact Precision Metal Housing
  • Accurate CCD Alignment
  • Color (RGB Bayer Filter) and Monochrome
  • High Frame Rate (Ideal for High Speed Image Capture)
  • Trigger Modes (Reset & Non-Reset) Pulse Width and Edge Preset
  • Multiple Trigger Channels (CL Cable or Hirose Connector)
  • Low Heat System
  • Remote Head and Power Over Camera Link Models

Model Brand Model Format Sensor Color Resolution Frame Rate Shutter Interface
STC-POCL33A Sentech CL Standard 1/3" CCD Mono 648 x 494 90 fps Global CameraLink
STC-POCLC33A Sentech CL Standard 1/3" CCD Color 648 x 494 90 fps Global CameraLink
STC-POCL83A Sentech CL Standard 1/3" CCD Mono 1024 x 768 30 fps Global CameraLink
STC-POCLC83A Sentech CL Standard 1/3" CCD Color 1024 x 768 30 fps Global CameraLink
STC-POCL83A-44 Sentech CL Standard 1/3" CCD Mono 1024 x 768 30 fps Global CameraLink
STC-POCLC83A-44 Sentech CL Standard 1/3" CCD Color 1024 x 768 30 fps Global CameraLink
STC-POCL152A Sentech CL Standard 1/2" CCD Mono 1360 x 1024 19 fps Global CameraLink
STC-POCLC152A Sentech CL Standard 1/2" CCD Color 1360 x 1024 19 fps Global CameraLink
STC-POCL202A Sentech CL Standard 1/1.8" CCD Mono 1620 x 1220 16 fps Global CameraLink
STC-POCLC202A Sentech CL Standard 1/1.8" CCD Color 1620 x 1220 16 fps Global CameraLink
STC-POCL232A Sentech CL Standard 1/1.8" CCD Mono 1620 x 1236 30 fps Global CameraLink
STC-POCLC232A Sentech CL Standard 1/1.8" CCD Color 1620 x 1236 30 fps Global CameraLink
STC-POCL500A Sentech CL Standard 2/3" CCD Mono 2448 x 2058 16 fps Global CameraLink
STC-POCLC500A Sentech CL Standard 2/3" CCD Color 2448 x 2058 16 fps Global CameraLink
