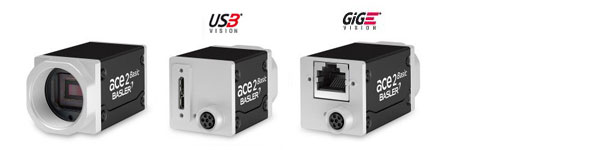

Basler ace 2 Basic
Highlight: GigE
Demonstrated Basler unwavering quality with broad PC vision list of capabilities for standard machine vision applications.
- Optimized hardware meets state-of-the-art CMOS sensor technology from Sony
- Powerful Computer Vision feature set
- Unbeatable price/performance ratio for standard vision applications
| Model | Brand | Model | Format | Sensor | Color | Resolution | Frame Rate | Shutter | Interface |
|---|---|---|---|---|---|---|---|---|---|
| a2A1920-51gmBAS | Basler | ace2 basic | 1/2.3" | CMOS | Mono | 2.3 MP | 51 fps | Global | GigE |
| a2A1920-51gcBAS | Basler | ace2 basic | 1/2.3" | CMOS | Color | 2.3 MP | 51 fps | Global | GigE |
| a2A2590-22gmBAS | Basler | ace2 basic | 1/2.8" | CMOS | Mono | 5.0 MP | 22 fps | Rolling | GigE |
| a2A2590-22gcBAS | Basler | ace2 basic | 1/2.8" | CMOS | Color | 5.0 MP | 22 fps | Rolling | GigE |
| a2A3840-13gmBAS | Basler | ace2 basic | 1/1.8" | CMOS | Mono | 8.3 MP | 13 fps | Rolling | GigE |
| a2A3840-13gcBAS | Basler | ace2 basic | 1/1.8" | CMOS | Color | 8.3 MP | 13 fps | Rolling | GigE |
Highlight: USB3.0
Demonstrated Basler unwavering quality with broad PC vision list of capabilities for standard machine vision applications.
- Optimized hardware meets state-of-the-art CMOS sensor technology from Sony
- Powerful Computer Vision feature set
- Unbeatable price/performance ratio for standard vision applications
| Model | Brand | Model | Format | Sensor | Color | Resolution | Frame Rate | Shutter | Interface |
|---|---|---|---|---|---|---|---|---|---|
| a2A1920-160umBAS | Basler | ace2 basic | 1/2.3" | CMOS | Mono | 2.3 MP | 160 fps | Global | USB3.0 |
| a2A1920-160ucBAS | Basler | ace2 basic | 1/2.3" | CMOS | Color | 2.3 MP | 160 fps | Global | USB3.0 |
| a2A2590-60umBAS | Basler | ace2 basic | 1/2.8" | CMOS | Mono | 5.0 MP | 60 fps | Rolling | USB3.0 |
| a2A2590-60ucBAS | Basler | ace2 basic | 1/2.8" | CMOS | Color | 5.0 MP | 60 fps | Rolling | USB3.0 |
| a2A3840-45umBAS | Basler | ace2 basic | 1/1.8" | CMOS | Mono | 8.3 MP | 45 fps | Rolling | USB3.0 |
| a2A3840-45ucBAS | Basler | ace2 basic | 1/1.8" | CMOS | Color | 8.3 MP | 45 fps | Rolling | USB3.0 |
Basler ace 2 Series
One camera series, two product lines. Always the right choice! Welcome to the next ace generation!
Profitable client input and broad experience from the principal ace age are consolidated in this new ace 2 camera arrangement. Custom fitted to your diverse vision needs, the two product offerings, expert 2 Basic and pro 2 Pro, offer amazing picture quality gratitude to cutting edge CMOS sensor innovation from Sony, improved firmware and equipment with GigE or USB 3.0 interface, an advanced link portfolio, simple taking care of and combination just as similarity with Basler's broad adornment portfolio. The contrast between the two ace 2 product offerings lies in the incorporated highlights: an amazing Computer Vision list of capabilities for standard vision needs or the novel new Beyond highlights from Basler for all the more requesting errands with greatest execution. Your bit of leeway: you pay for what you truly need.
An overview of the Basler ace 2 camera series
- Two product offerings: expert 2 Basic and pro 2 Pro - custom fitted to various vision needs
- As of now eight models (four for each line) highlighting IMX392 sensor from Sony, 2.3 MP goals and edge rates of up to 160 fps
- 16 new models (eight per line) with Sony IMX334 sensor, 5 and 8 MP resolution and frame rates of up to 60 fps
- Tiny Housing with dimension 29 mm x 29 mm
- New, streamlined equipment plan with status LED on the back, improved mount, removable IR cut channel and vigorous M8 connector
- New firmware idea
- Fast Powerful and cost-effective software integration
- Top value execution proportion
- Known dependability and life span of Basler items with 3-year guarantee
- Good with Basler's reasonable embellishment portfolio
- Simple incorporation on account of the arch Camera Software Suite from Basler
