Diffused Ring Light illumination
| Model | Dimension | Description | Price | |
|---|---|---|---|---|
| RLF3-45-050-1-X |
|
Diffused Ring Light illumination OD: 56.4mm, ID: 10mm, Angle 45° Color (R.G.B.W), Power 2.90W, 120mA |  |
 |

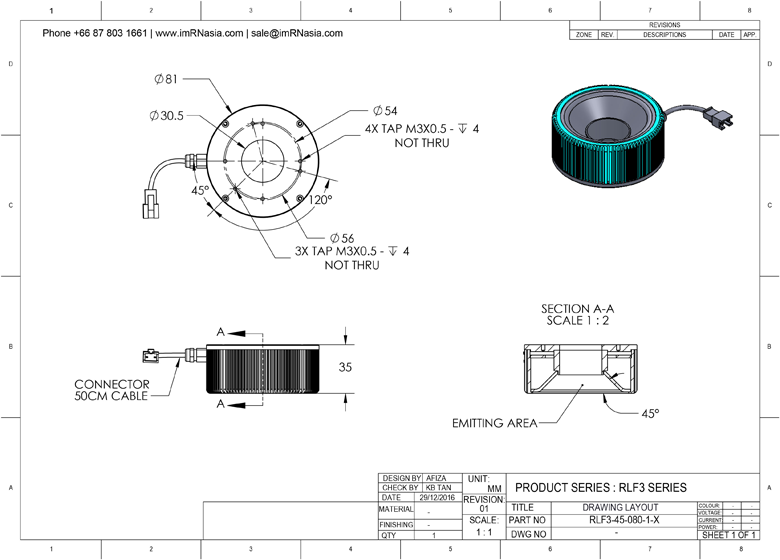

| RLF3-45-080-1-X |
|
Diffused Ring Light illumination OD: 56.4mm, ID: 10mm, Angle 45° Color (R.G.B.W), Power 2.90W, 120mA | |
|
| RLF3-45-100-1-X |
|
Diffused Ring Light illumination OD: 105.2mm, ID: 45.6mm, Angle 45° Color (R.G.B.W), Power 6.50W, 270mA | |
|

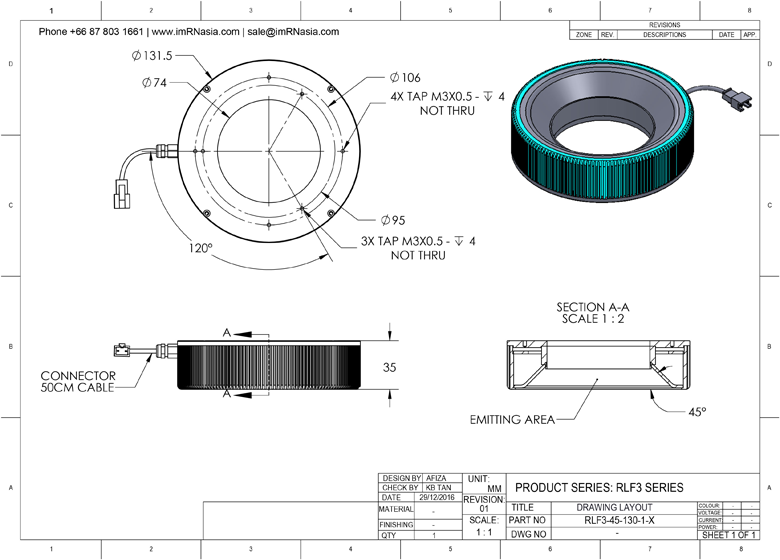

| RLF3-45-130-1-X |
|
Diffused Ring Light illumination OD: 131.5mm, ID: 74mm, Angle 45° Color (R.G.B.W), Power 8.60W, 360mA | |
|

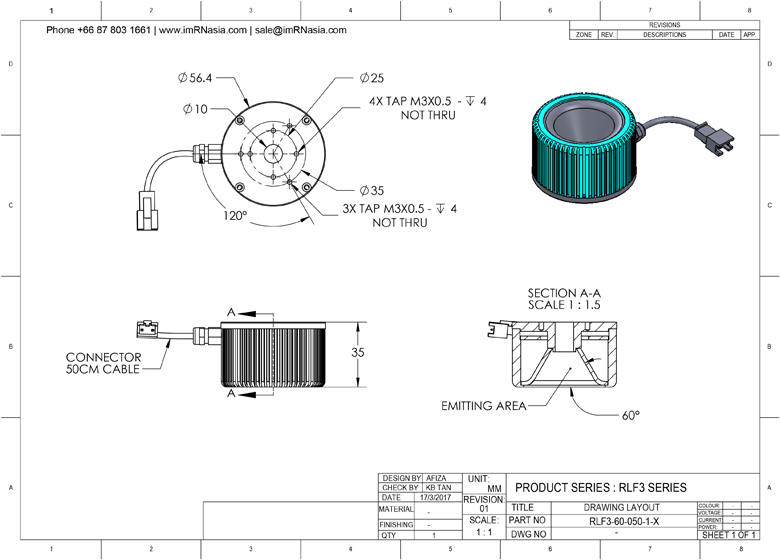

| RLF3-60-050-1-X |
|
Diffused Ring Light illumination OD: 56.4mm, ID: 10mm, Angle 60° Color (R.G.B.W), Power 2.90W, 120mA | |
|
| RLF3-60-080-1-X |
|
Diffused Ring Light illumination OD: 81mm, ID: 36.2mm, Angle 60° Color (R.G.B.W), Power4.30W, 180mA | |
|
| RLF3-60-100-1-X |
|
Diffused Ring Light illumination OD: 105.2mm, ID: 57mm, Angle 60° Color (R.G.B.W), Power 6.50W, 270mA | |
|
| RLF3-60-130-1-X |
|
Diffused Ring Light illumination OD: 131.5mm, ID: 84mm, Angle 60° Color (R.G.B.W), Power 8.60W, 360mA | |
|
Diffused Square Light illumination
| Model | Dimension | Description | Price | |
|---|---|---|---|---|

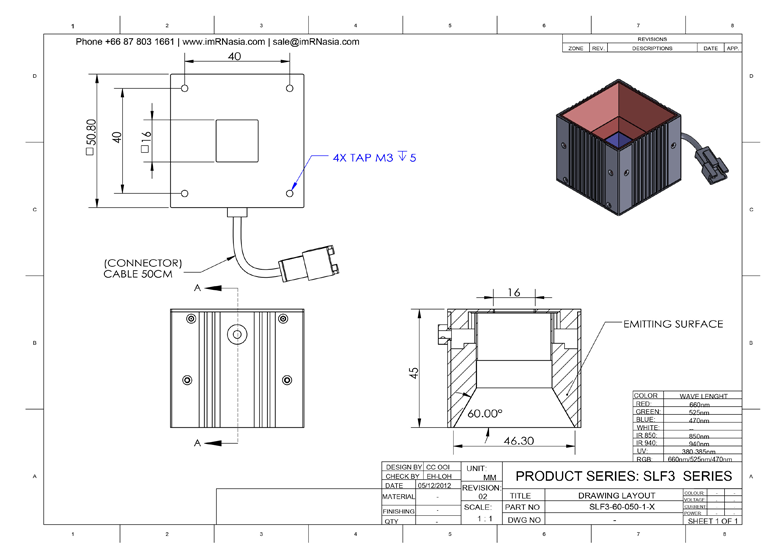

| SLF3-60-050-1-X |
|
Diffused Square Light illumination SIZE: 50.8x50.8mm,ID:16x16mm, Angle 60° Color (R.G.B.W), Power 2.88W, 120mA | |
|

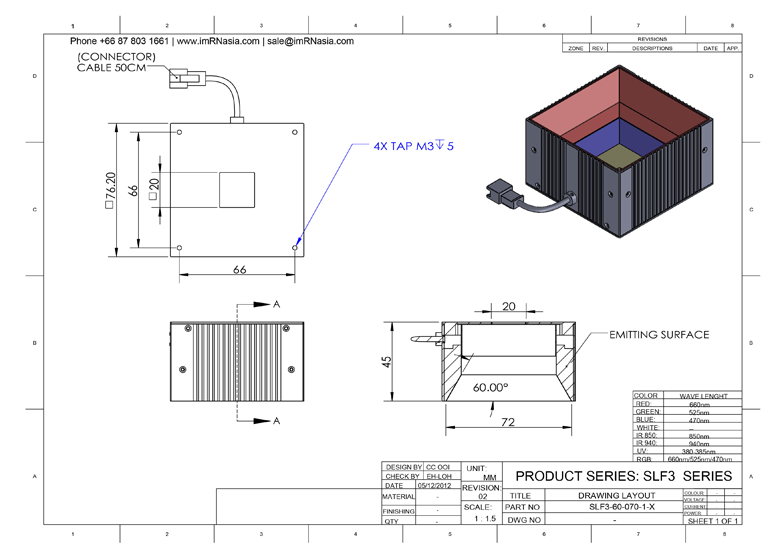

| SLF3-60-070-1-X |
|
Diffused Square Light illumination SIZE: 76.2x76.2mm,ID:20x20mm, Angle 60° Color (R.G.B.W), Power 4.32W, 180mA | |
|

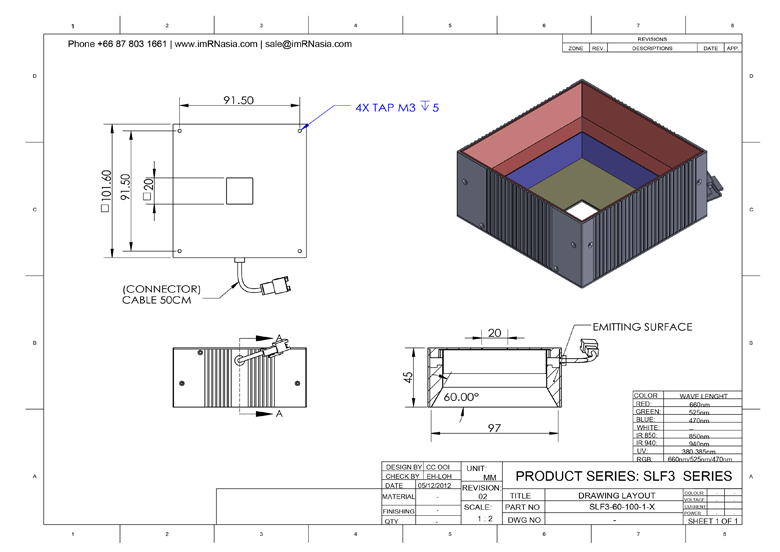

| SLF3-60-100-1-X |
|
Diffused Square Light illumination SIZE: 101.6x101.6mm,ID:66.0x66.0mm, Angle 60° Color (R.G.B.W), Power 4.80W, 200mA | |
|
| SLF2-90-030-1-X |
|
Diffused Square Light illumination SIZE: 31.8x31.8mm,ID:10x10mm, Color (R.G.B.W), Power 1.44W, 60mA | |
|
| SLF2-90-050-1-X |
|
Diffused Square Light illumination SIZE: 50.8x50.8mm,ID:10x10mm, Color (R.G.B.W), Power 2.88W, 120mA | |
|

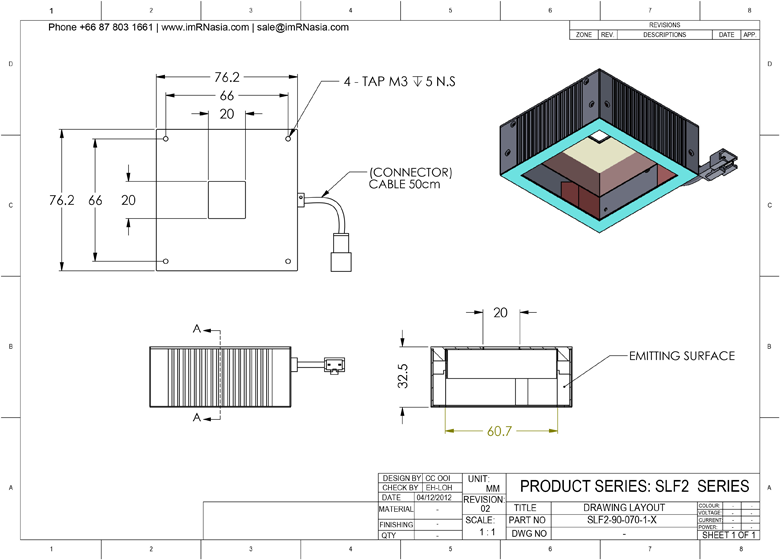

| SLF2-90-070-1-X |
|
Diffused Square Light illumination SIZE: 76.2x76.2mm,ID:20x20mm, Color (R.G.B.W), Power 4.32W, 180mA | |
|

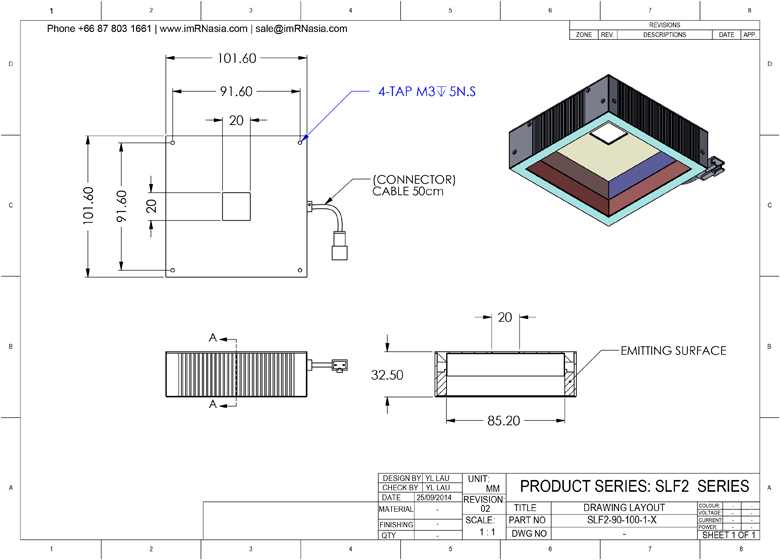

| SLF2-90-100-1-X |
|
Diffused Square Light illumination SIZE: 101.6x101.6mm,ID:20x20mm, Color (R.G.B.W), Power4.80W, 200mA | |
|
| SLF2-90-050-X |
|
Diffused Square Light illumination SIZE: 50.8x50.8mm,ID:26.0x26.0mm, Color (R.G.B.W), Power 2.88W, 120mA | |
|
| SLF2-90-070-X |
|
Diffused Square Light illumination SIZE: 76.2x76.2mm,ID:55x55mm, Color (R.G.B.W), Power 4.32W, 180mA | |
|
| SLF2-90-100-X |
|
Diffused Square Light illumination SIZE:101.6x101.6mm,ID:80x80mm, Color (R.G.B.W), Power 4.80W, 200mA | |
|

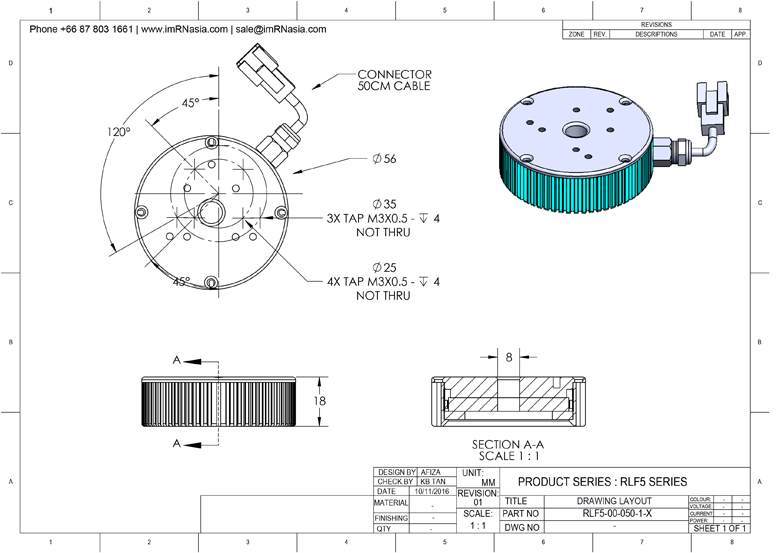

| RLF5-00-050-1-X |
|
Diffused Square Light illumination OD: 56mm, ID: 8mm, Angle 0° Color (R.G.B.W), Power 2.16W, 90mA | |
|
| RLF5-00-080-1-X |
|
Diffused Square Light illumination OD: 81mm, ID: 21mm, Angle 0° Color (R.G.B.W), Power 4.70W, 196mA | |
|
| RLF5-00-100-1-X |
|
Diffused Square Light illumination OD: 105.2mm, ID: 30mm, Angle 0° Color (R.G.B.W), Power 5.40W, 234mA | |
|
| RLF5-00-130-1-X |
|
Diffused Square Light illumination OD: 131.5mm, ID: 45mm, Angle 0° Color (R.G.B.W), Power 7.10W, 300mA | |
|
| RLF5-15-080-1-X |
|
Diffused Square Light illumination OD: 81mm, ID: 19mm, Angle 15° Color (R.G.B.W), Power 4.70W, 196mA | |
|
| RLF5-15-100-1-X |
|
Diffused Square Light illumination OD: 105.2mm, ID: 35mm, Angle 15° Color (R.G.B.W), Power 5.40W, 234mA | |
|
| RLF5-15-130-1-X |
|
Diffused Square Light illumination OD: 131.5mm, ID: 45.6mm, Angle 15° Color (R.G.B.W), Power 7.10W, 300mA | |
|
| RLF5-30-050-1-X |
|
Diffused Square Light illumination OD: 56mm, ID: 12mm, Angle 30° Color (R.G.B.W), Power 2.16W, 90mA | |
|
| RLF5-30-080-1-X |
|
Diffused Square Light illumination OD: 81mm, ID: 25mm, Angle 30° Color (R.G.B.W), Power 4.70W, 196mA | |
|
| RLF5-30-100-1-X |
|
Diffused Square Light illumination OD: 105.2mm, ID: 44mm, Angle 30° Color (R.G.B.W), Power 5.40W, 234mA | |
|

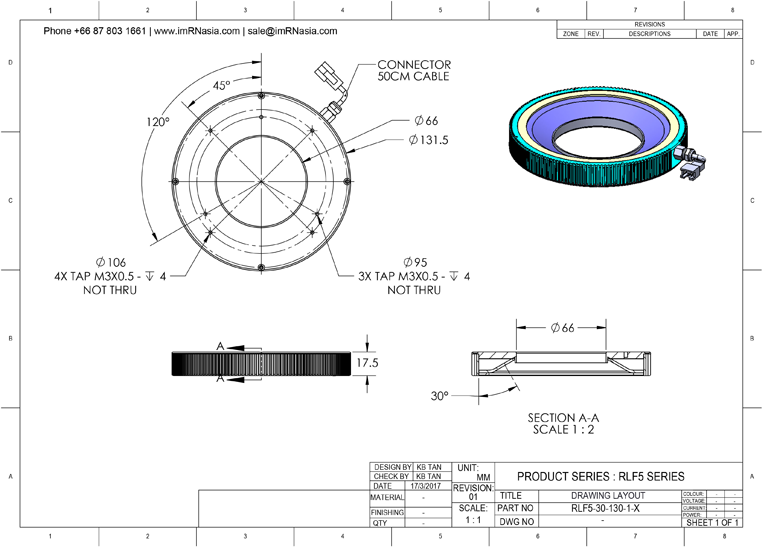

| RLF5-30-130-1-X |
|
Diffused Square Light illumination OD: 131.5mm, ID: 66mm, Angle 30° Color (R.G.B.W), Power 7.10W, 300mA | |
|
Diffused Square Bar Light illumination
| Model | Dimension | Description | Price | |
|---|---|---|---|---|
| BLQF-00-050-1-X |
|
Diffused Square Bar Light illumination SIZE: 114.0x114.0mm,ID: 90x90mm, Color (R.G.B.W), Power 2.88W, 120mA | |
|

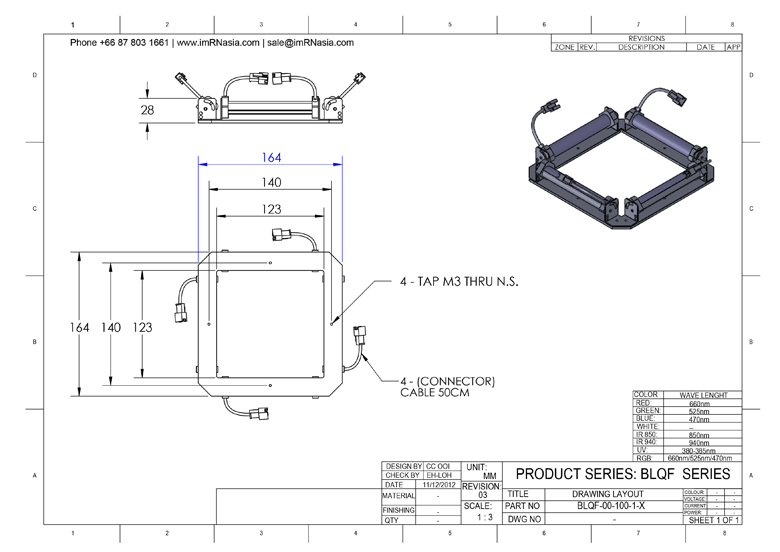

| BLQF-00-100-1-X |
|
Diffused Square Bar Light illumination SIZE: 164.0x164.0mm,ID: 140x140mm, Color (R.G.B.W), Power 5.76W, 320mA | |
|
 |
 |
 |
 |
 |
 |
 |
 |
